3D MULTI-PURPOSE LASER
SENSOR
-
3D SOFTWARE INCLUDED
-
DLL INTERFACING CAPABILITIES
-
VERY LOW-COST, HIGHLY
RELIABLE
-
USB CONNECTIVITY FOR DATA
AND POWER
Tech. spec.
in PDF (click here)
The new PROCAM 3D laser camera
offers all the necessary features for either process control in a
factory production or 3d digitizing of objects for reverse engineering.
The Procam uses its USB connection for both data
transmission to the computer and power. No need for any other power
cable. An easy-to-use interface enables the user to control all the
camera parameters and comes with extensive measuring tools. It also
provides 3D scanning capabilities with different data format saving
possibilities (STL, DXF, etc...) in order to use the data with other CAD
software.
Furthermore, the PROCAM camera and RDP3D software
enables experienced programmers to make their own interfaces using RDP
Technologies DLL files for a more specific use on your already existing
application.
|

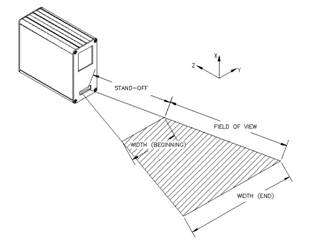

CHARACTERISTICS
|
|
Dimensions
|
4.85’’x2.08’’x4.05’’(123,3x52,8x102,9mm)
|
|
Weight
|
.73 lbs (0,33 kg)
|
|
Stand-off
|
4.00’’(101,6 mm)
|
|
Field of
View
|
39.4’’(1000mm)
|
|
Width
(begin)
|
4.00’’(101,6mm)
|
|
Width (end)
|
36’’(914,4mm)
|
|
Resolution
(Z)
|
.01’’(0,2mm)
|
|
Resolution
(Y)
|
.006 - .06’’(0,16 - 1,4mm)
|
|
Scan rate
|
30 frames per second
|
|
Pixel/profile
|
640 calibrated points
|
|
Laser Power
|
5 mW (class 3R)
|
|
Port and
Power
|
USB 2.0
|
RDP3D
software specifications
The RDP3D application is a program that enables the
user to control the PROCAM camera, provides real-time measuring tools
and 3D acquisition capabilities. This application also makes it possible
to save in file formats compatible with different CAD software such as
AutoCAD, SolidWorks or 3dsMax.
The RDP3D software is designed as a user-friendly
interface enabling you to execute measurements for your applications
(see figure 1). The interface enables users to have complete control
over the PROCAM camera by letting them choose between an Automatic Gain
Control (AGC) or a manual control.
Figure 1: RDP3D measuring
capabilities (Distance, Line and Circle)
The RDP3D software can also be used to generate 3D
objects by simply scanning them. A series of features enables the user
to rotate, zoom and filter the 3D image and then save it in different
formats including STL and DXF for use in other CAD software.
Finally, The RDP3D software has been designed to
offer programming flexibility thru the use of DLL files which allow
users to incorporate all the camera controls in their own software
application.
Contact RDP
Technologies for more information at
sale@rdptechnologies.ca.
|
